Visible Light Communication (VLC)

‌1.1 GHz of modulation bandwidth in LD based VLC without a limitation from the slow 3.8 MHz phosphor response. A high data transmission rate of 2 Gbit/s was achieved without an optical blue filter using OOK modulation scheme.

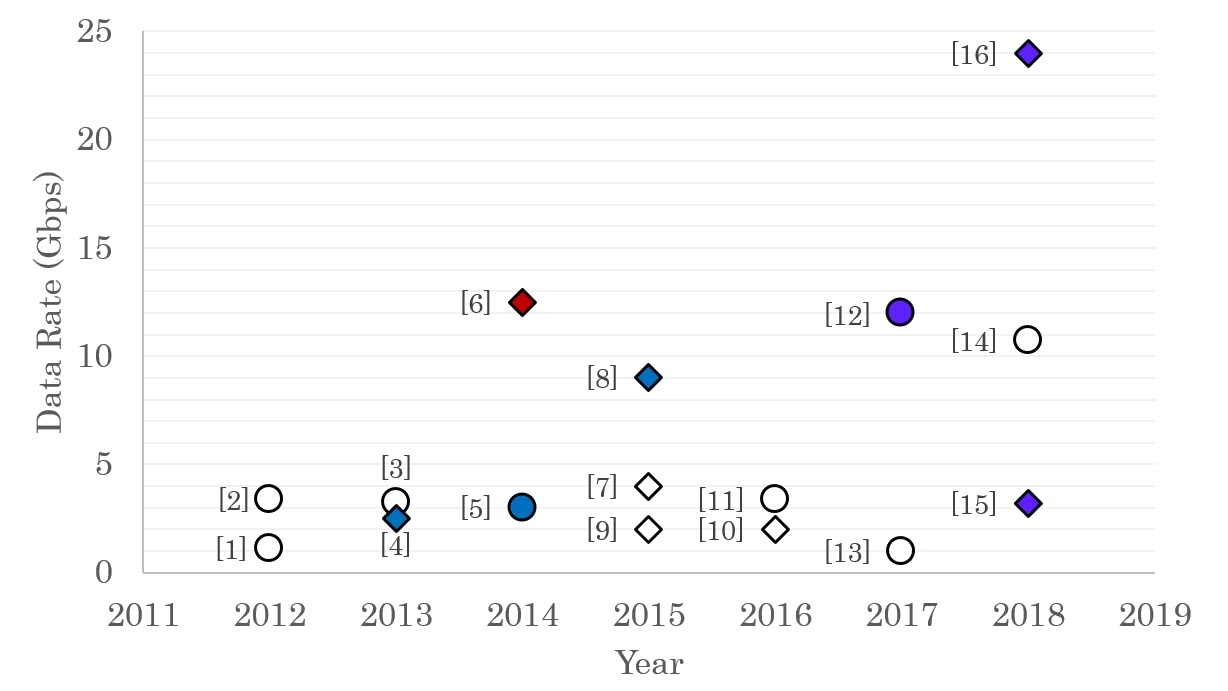

The figure on the right shows the latest advancements in Visible Light Communication (VLC).

To download the data of this figure, please click here.

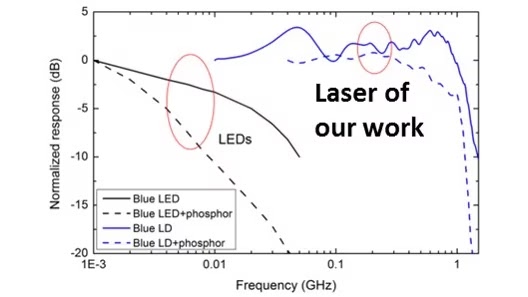

We demonstrate data transmission of unfiltered white light generated by direct modulation of a blue gallium nitride (GaN) laser diode (LD) exciting YAG:Ce phosphors. 1.1 GHz of modulation bandwidth was measured without a limitation from the slow 3.8 MHz phosphor response.

A high data transmission rate of 2 Gbit/s was achieved without an optical blue-filter using a non-return-to-zero on-off keying (NRZ-OOK) modulation scheme. The measured bit error rate (BER) of 3.50 × 10⁻³ was less than the forward error correction (FEC) limit of 3.8 × 10⁻³.
